The Cub Cadet® Ultima Series ZTX4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.
| 10-gauge steel with 2-gauge reinforcement |

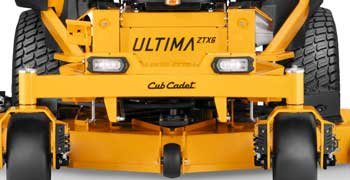

Dual Led Headlights |
Quick-Adjust Lap Bars |

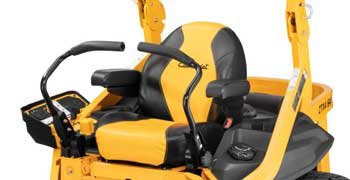

| High Back Seat |

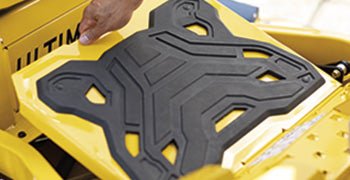

Easy Maintenance |

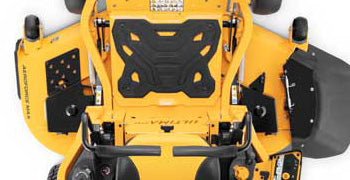

Reduced Vibration |
Engine
-
Engine Brand: Kohler®
-
Engine Model: Pro 7000 series
-
Engine Model Number: ZT745
-
Engine Displacement: 747cc
-
Engine Output: 26HP
-
Starter Type: Electric
-
Fuel Tank Capacity: 5.5 gal. US
-
Cylinders: Twin
-
Engine Start: Ignition Key
-
Engine Oil Capacity: 2 qt US
-
Lubrication: Fully pressurized
-
Charging System: 12 amp regulated
-
Fuel Gauge: Yes
-
Governor: Mechanical
-
Choke: Separate Choke
-
Air Filter: Dual element
-
Oil Filter: Yes
-
Fuel Delivery: Carburetor
Battery
-
Battery: 210 CCA
-
Battery Type: AGM (Absorbent Glass Mat)
-
Battery Voltage: 12V
Drive System
-
Transmission: Hydro-Gear ZT 3100
-
Forward Speed: 8.5 MPH
-
Reverse Speed: 3.5 MPH
-
Drive System: Hydrostatic
Cutting Deck
-
Deck Cutting Width: 60 in
-
Deck Wash: No
-
Deck Material: 10-gauge steel with 2-gauge reinforcement
-
Deck Engagement (PTO): Electric
-
Deck Construction: Fabricated
-
Blade(s): Three
-
Deck Lift: Foot pedal with Dial Adjust
-
Cutting Height Range: 1″ – 4.75″
-
Anti-Scalping: Three gauge wheels
-
Deck Positions: 17
Warranty
-
Warranty: 4-year 800 hours
-
Frame Warranty: Lifetime Limited
-
Deck Shell Warranty: Lifetime limited
-
Commercial Warranty: 4-year 800 hours
Chassis
-
Frame: 1.5″ x 3″ tubular steel
-
Turning Radius: 0°
-
ROPS: Yes
-
Rear Tow Hitch: Yes
-
Corrosion Protection: Yes
Controls
-
Cruise Control: No
-
Brakes: Disc
-
Steering Control: Lap Bars
Comfort
-
Seat Type: 20″ high back
-
Armrests: Yes
-
Seat Adjustment: Lever
Wheels
-
Rear Tires: 22″x 12″-12″
-
Front Tires: 13″x 6.5″-6″
-
Tire Tread: Turf Master / Multi Trac
Additional Specifications
-
Hour Meter: Yes
-
Mulch Kit: Available separately
-
Headlight(s): Dual-LED
-
Cup Holder: Yes
-
Operator Presence System: Yes
-
Parking Brake: Lap Bar Integrated
-
Model Number: 47TSAAA8A10
Specifications
- Series Ultima Series™ ZTX
|
|
AIR FILTER: 32 883 13-S1 OR 490-200-K064
OIL FILTER: 52 050 02-S
FUEL FILTER: 24 050 13-S1
SPARK PLUG: 25 132 14-S
PTO BELT: NA
DECK BELT: 754P06094 OR 490-501-C090
DRIVE BELT: 954-04317A
TRANS FILTER: HG-52114P
BLADES: 742P05516
XTREME BLADES: 01005381P-X
IGNITION KEY: 925-1745A
ENGINE OIL: 25 367 65-S
|
